Clean Energy, Energy Storage
Storage, sized
to the site.
Uttam helps operators across Southeast Asia source the right storage solution for their site, on the right terms. From a single cabinet shaving a building’s peak to a utility block firming renewables.
01·What storage does
- 01
Peak shaving
Discharge through peak-tariff hours to cut demand charges.
- 02
Solar self-consumption
Store midday solar and use it on site after sunset.
- 03
Backup & diesel replacement
Carry critical loads through outages and cut generator run hours.
- 04
Grid & renewables firming
Smooth renewable output and support the grid at utility scale.
02·Product lines
Cabinet to container.
Two product lines, EAST and RelyEZ, cover commercial, industrial and utility-scale sites on lithium iron phosphate cells.
EAST · Commercial & industrial
C&I cabinets
Outdoor and indoor cabinet systems for a single building or a factory floor. All-in-one, hybrid PV and stacked formats, expandable as the load grows.

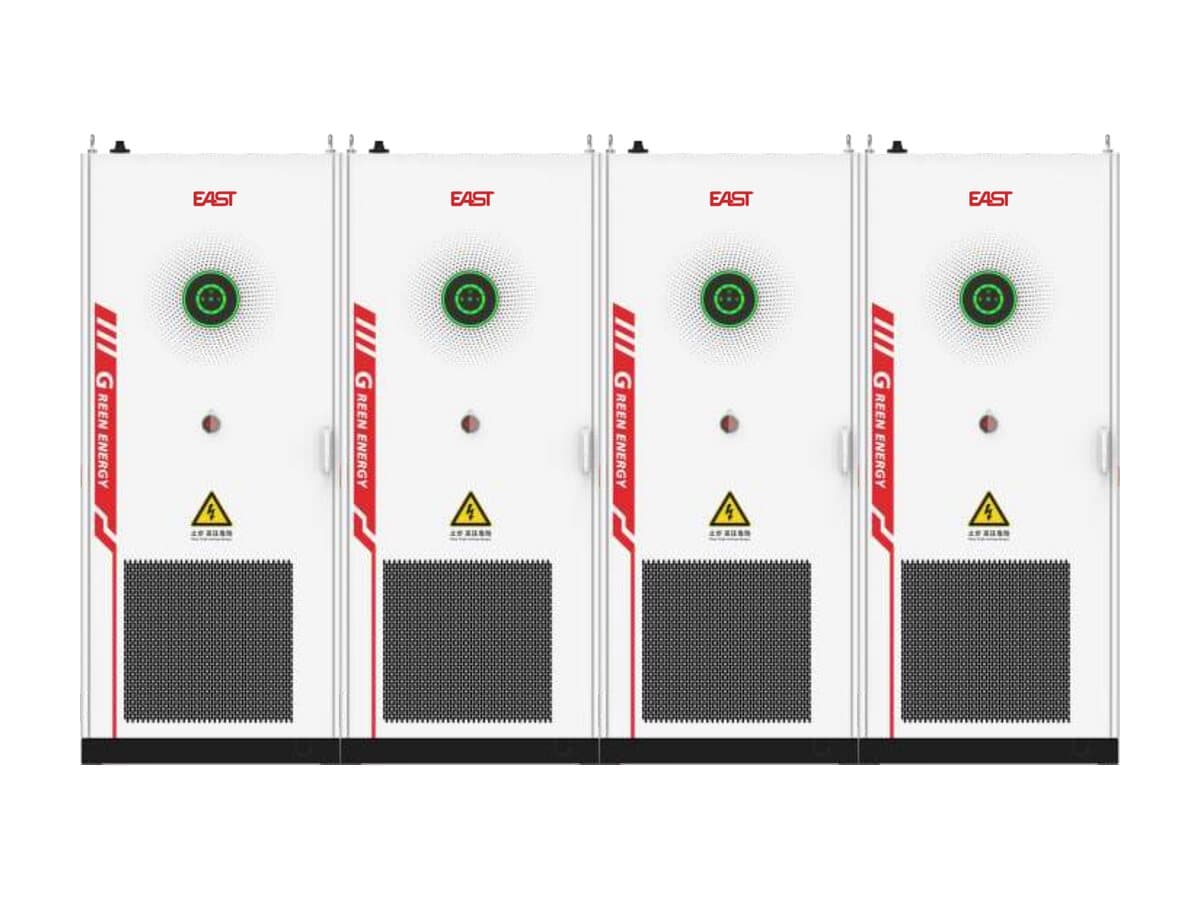

- EASS125k/261kWh-C
- EAPVESS130k261kWh-C
- EEB-R60~261-01
- 30k-60k / 100-120kWh
- EASS all-in-one
- 125 kW / 261 kWhliquid-cooled
- EAPVESS hybrid PV
- 130 kW / 261 kWhto 1,044 kWh
- Stacked
- 60.2 to 261.2kWh, indoor
- Small commercial
- 30 to 60 kW / 100 to 120 kWhDiesel-PV-ESS
- On / off-grid switching
- <20ms, hybrid
- Cycle life
- 8,000+EASS · stacked
- IP rating
- IP54 cabinet · IP67 packEASS · EAPVESS
EAST · Utility scale
2.5 MW utility blocks
Containerized blocks for grid support, renewables firming and large industrial load. Integrated AC and DC in one 20 ft container, or split battery containers with a combined PCS and transformer unit.

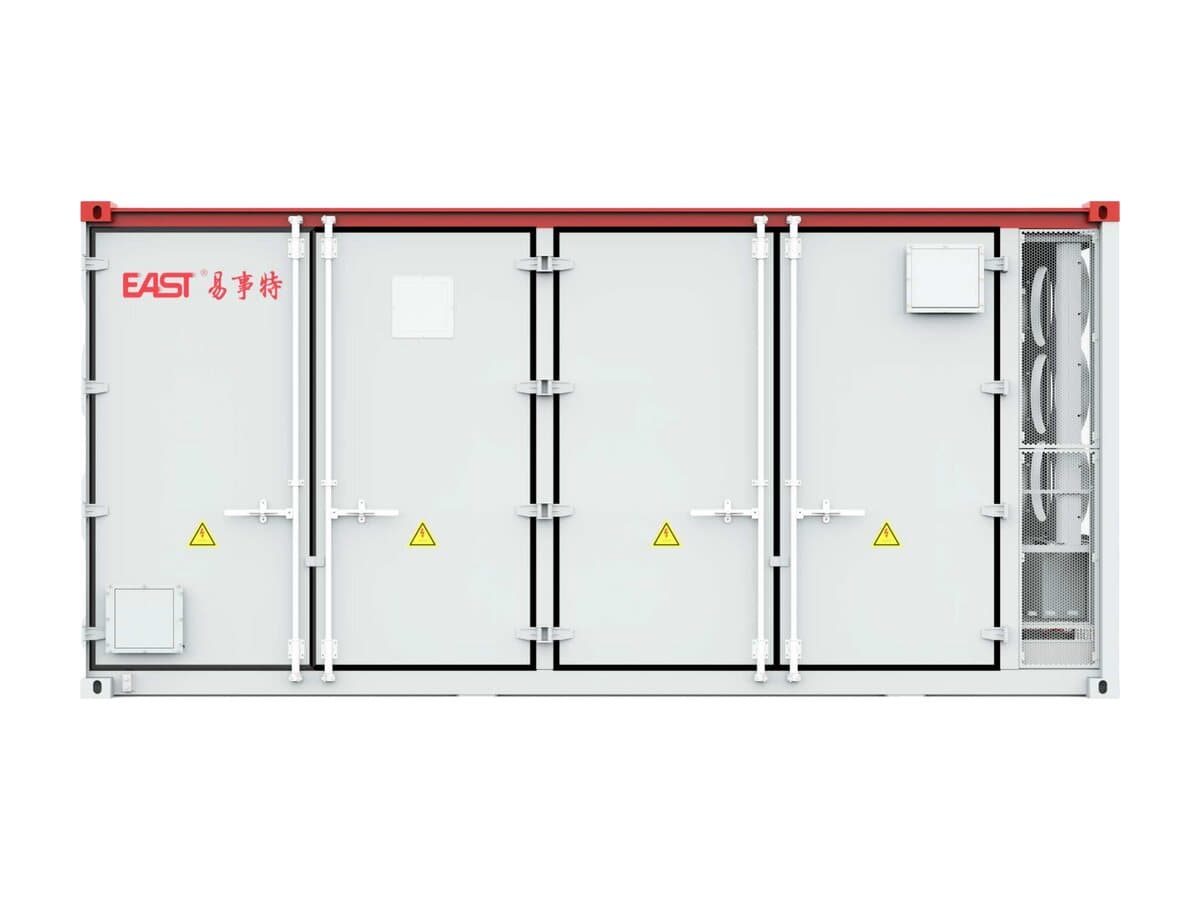

- 2.5MW/5MWh integrated
- 2.5MW/5MWh split
- 2.5MW/10MWh split
- Integrated AC + DC
- 2.5 MW / 5 MWh20 ft
- Split system
- 2.5 MW / 5 to 10 MWhwith PCS & transformer
- Rated capacity
- 5,015.96 / 10,031.92kWh
- Cell
- LFP 3.2 V / 314 Ah
- Rated AC output
- 2,500kW split · kVA integrated
- Enclosure
- IP54C5 anti-corrosion, split
- Max. altitude
- 4,000m

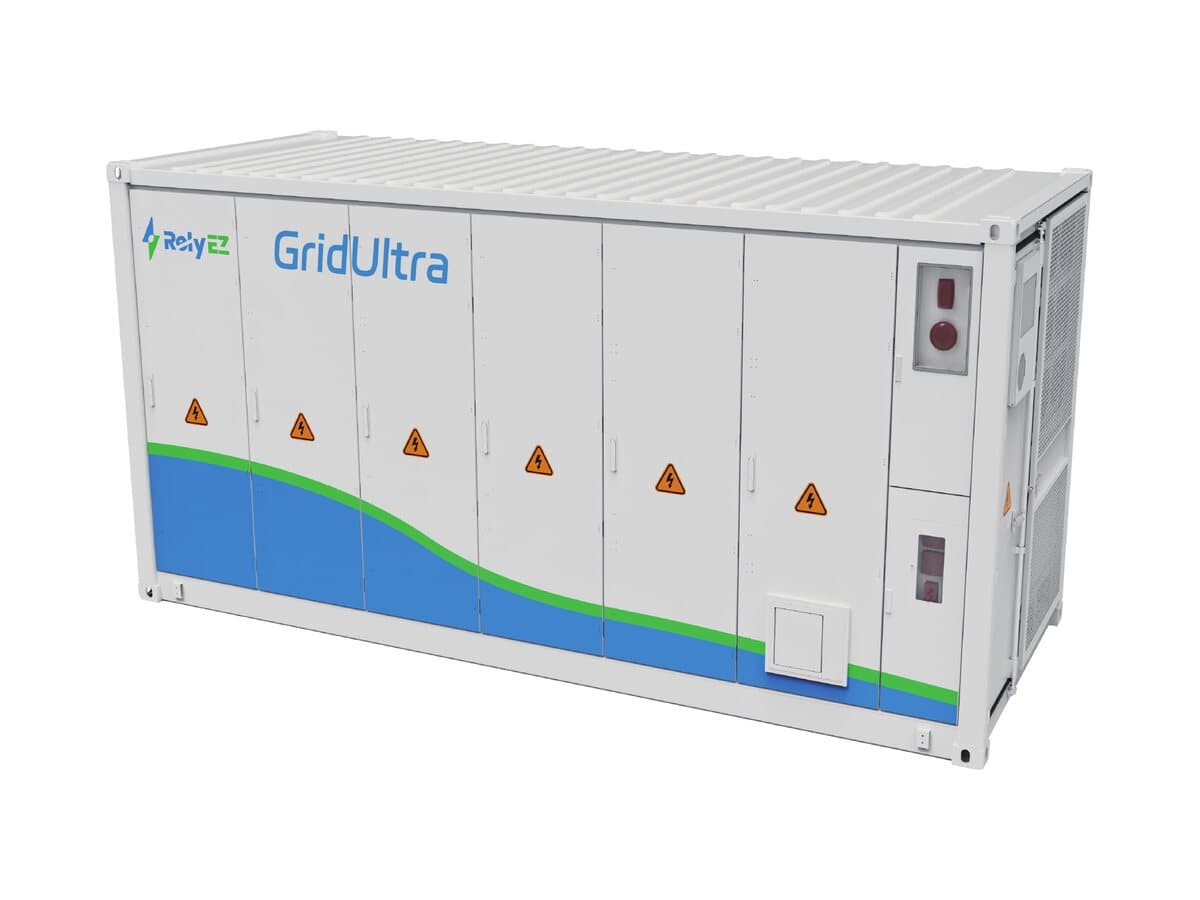

RelyEZ · Containerized
Liquid & immersion-cooled containers
Factory-assembled battery containers, liquid-cooled or with cells fully immersed in insulating coolant, plus an all-in-one 250 kWh unit for C&I sites.
- GridUltra 4.18MWh
- GridUltra 5.016MWh
- GridUltra 5016-5
- VenturePro 250
- GridUltra 0.25P
- 4,179.9 kWh1,045 kW
- GridUltra 0.5P
- 5,015.961 kWh2,500 kW
- GridUltra 5016-5
- 5,015.9616 kWhimmersion
- VenturePro 250
- 250 kWh / 125 kWall-in-one
- Round-trip efficiency
- 93%at BOL, GridUltra
- Cycle life
- 8,000+ · 12,000+liquid · immersion
- IP rating
- IP55 container · IP67 moduleGridUltra
03·Datasheet
Across the range.
Lithium iron phosphate throughout, with IEC and UL certifications across the range. Full manufacturer datasheets for each model are available on request.
- Chemistry
- LFP, lithium iron phosphate314 Ah cells
- Cycle life
- 8,000+cycles
- Cycle life, immersion-cooled
- 12,000+cycles
- Certifications
- IEC 62619 · IEC 62933 · IEC 63056 · UL 9540A · UN38.3
- IP rating
- IP54 to IP55 enclosure · IP67 pack
- Anti-corrosion
- C4 to C5by model
- Cooling
- Liquid · immersion · airby model
- Communications
- Modbus TCP · IEC 61850
- Fire suppression
- Perfluorohexanone · aerosol · waterby model
04·Who it’s for
From one building to the grid.
- Factories
- Cold storage
- Hospitals
- Malls & retail
- Hotels
- Data centres
- Offices & campuses
- Garment & textile
- Automotive
- Food processing
- Water treatment
- Ports & logistics
- Solar developers
- Utilities
05·How we work
The site comes first.
01
Load profile & tariff review
We start with the site: interval load data, the tariff structure, the space available and the grid connection.
02
Sizing & payback model
Power and energy are sized to the duty cycle, and the payback is modelled against the site’s own tariff, with every assumption shown.
03
Sourcing & commercial terms
The site is matched to the right system from the EAST and RelyEZ lines, with clear terms agreed in writing.
04
Delivery & commissioning
Delivery, installation and commissioning are coordinated with local installation partners through to handover.
Source with Uttam
Tell us the load, the site and the duty cycle. We’ll spec the storage.
Battery energy storage for commercial, industrial and utility-scale sites across Southeast Asia.
